Tigris K5 / M5 - Press Fittings
The fitting that will blow you away
Wavin's brand new fitting generation, Tigris K5/M5 has been developed from scratch by making the design ideal for the needs of the installer has been adapted. Wavin Tigris K5/M5, builds on the success and reliability delivered by its predecessor, the Tigris K1/M1.

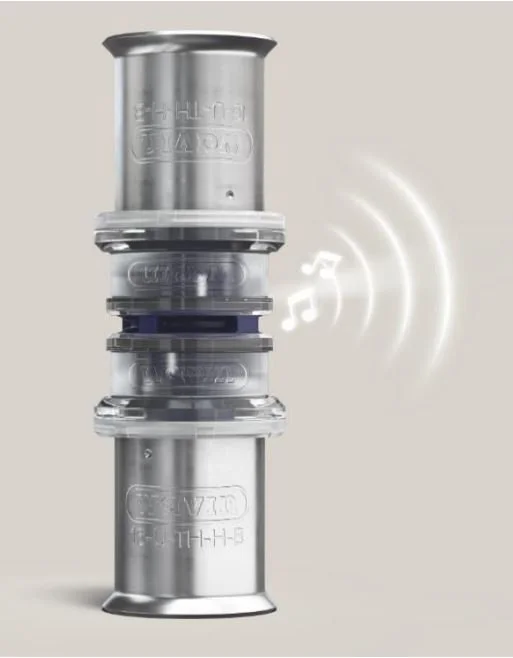

Tigris K5/M5 has all kinds of smart solutions, including the very first of their kind to feature the innovative Acoustic Leak Alert function. While performing a pressure test with air, an unpressed Tigris K5/M5 press fitting will be heard loud and clear. Thanks to the whistle sound of 80 decibels, you'll find the unpressed fitting very easily. Even if there's a lot of noise around you. But that’s not all. The fittings also offer an improved flow and can now be pressed with multiple pressing profiles.
Wavin Tigris K5 and Tigris K1 are press fittings with bodies made of the high technical performance plastic Polyphenylsulfone (PPSU). On top, the PPSU program offers a Push-Fit solution; Tigris smartFIX.
Wavin Tigris M5 and Tigris M1 are metal press fittings with bodies made of UBA listed drinking water approved brass materials.
Both Radial Press-Fit, in PPSU or brass, cover a complete range of fittings that fit up to 75 mm muliti-layer composite pipes.
WILL BE AVAILABLE AT
YOUR LOCAL MERCHANT
TIGRIS K5 FITTINGS
COUPLER
16
20
25
32
40
COUPLER
CONNECTOR MT
16 x 1/2”
16 x 3/4”
20 x 1/2”
20 x 3/4”
24 x 3/4”
25 x 1”
32 x 1”
32 x 1 1/4”
40 x 1 1/4”
CONNECTOR MT
END PLUG
16
20
25
END PLUG
COUPLER REDUCED
EQUAL TEE
16
20
25
32
40
EQUAL TEE
ELBOW 90°
REDUCED TEE
16 x 20 x 16
20 x 16 x 16
20 x 16 x 20
20 x 20 x 16
20 x 25 x 20
25 x 16 x 16
25 x 16 x 20
25 x 16 x 25
25 x 20 x 16
25 x 20 x 20
25 x 20 x 25
25 x 25 x 20
25 x 32 x 25
32 x 16 x 32
32 x 20 x 25
32 x 20 x 32
32 x 25 x 25
32 x 25 x 32
40 x 25 x 32
40 x 25 x 40
40 x 32 x 32
40 x 32 x 40
REDUCED TEE
CONNECTOR FT
WALL FLANGE FT
16 x 1/2”
20 x 1/2”
20 x 3/4”
WALL FLANGE FT
TIGRIS M5 - FITTINGS
COUPLER
16
20
25
32
40
COUPLER
CONNECTOR FT
16 x 1/2”
16 x 3/4”
20 x 1/2”
20 x 3/4”
20 x 1”
25 x 3/4”
25 x 1”
32 x 1”
32 x 1 1/4”
40 x 1 1/2”
CONNECTOR FT
WALL FLANGE FT
16 x 1/2”
16 x 1/2” long
20 x 1/2”
20 x 1/2” long
20 x 3/4”
WALL FLANGE FT
COUPLER METAL
16 x 15
20 x 15
20 x 18
20 x 22
25 x 22
25 x 28
COUPLER METAL
CONNECTOR MT
16 x 1/2”
16 x 3/4”
20 x 1/2”
20 x 3/4”
20 x 1”
25 x 3/4”
25 x 1”
32 x 1”
32 x 1 1/4”
40 x 1 1/2”
40 x 1 1/4”
CONNECTOR MT
COUPLING - REDUCER
20 x 16
25 x 16
25 x 20
32 x 16
32 x 20
32 x 25
40 x 25
40 x 32
COUPLER REDUCED
EQUAL TEE
16
20
25
32
40
EQUAL TEE
ELBOW 90°
16
20
25
32
40
ELBOW 90°
REDUCED TEE
16 x 20 x 16
20 x 16 x 16
20 x 16 x 20
20 x 20 x 16
25 x 20 x 20
20 x 25 x 20
25 x 16 x 25
25 x 20 x 25
25 x 16 x 16
25 x 20 x 16
25 x 16 x 20
25 x 25 x 20
25 x 32 x 25
32 x 16 x 32
32 x 20 x 32
32 x 25 x 25
32 x 25 x 32
32 x 20 x 25
40 x 20 x 40
40 x 25 x 40
40 x 32 x 40
40 x 25 x 32
40 x 32 x 32
REDUCED TEE
WHY NOT TAKE A QUICK LOOK!
Acoustic Leak Alert
Optimal Flow Performance with Opti Flow
Easy to Switch with Multi Jaw
