SiTech+
LOW NOISE SOIL AND WASTE DRAINAGE
Low-noise is the segment within the soil & waste market that is growing fastest, mainly due to increased demand for living comfort by end-customers. Wavin SiTech+ is a mineral reinforced polypropylene (PP) water discharge system that is easy to install and reduces the noise mainly due to its heavier fittings.
WILL BE AVAILABLE AT
YOUR LOCAL MERCHANT
FITTINGS

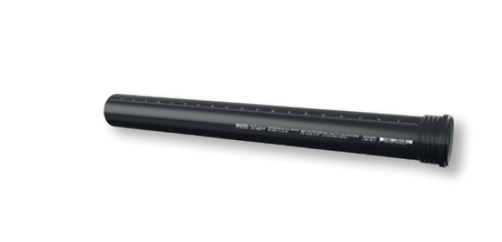

PIPE WITH SOCKET
3078869 ‐ 50 L=0.15m
3074143 ‐ 50 L=1.0m
3074146 ‐ 50 L=3.0m
3074150 ‐ 75 L=1.0m
3074153 ‐ 75 L=3.0m
3075739 ‐ 110 L=0.15m
3074164 ‐ 110 L=1.0m
3074167 ‐ 110 L=3.0m
3074179 ‐ 160 L=3.0m
PIPE WITH SOCKET
STOP COUPLER
3067799 ‐ 50
3067800 ‐ 75
3067802 ‐ 110
3067804 ‐ 160
STOP COUPLER

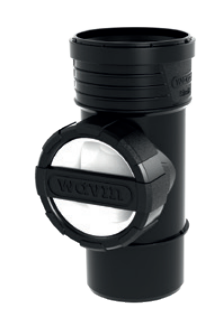

INSPECTION PIPE
3067787‐ 110
INSPECTION PIPE
BEND
3067110 ‐ 50 x 15°
3067711 ‐ 75 x 15°
3067713 ‐ 110 x 15°
3067713 ‐ 50 x 30°
3067719 ‐ 75 x 30°
3067721 ‐ 110 x 30°
3067726 ‐ 50 x 45°
3067727 ‐ 75 x 45°
3067729 ‐ 110 x 45°
3067731 ‐ 160 x 45°
3067741 ‐ 50 x 87.5°
3067742 ‐ 75 x 87.5°
3067744 ‐ 110 x 87.5°
3067746 ‐ 160 x 87.5°
BEND
SLIP COUPLER
3067791‐ 50
3067792‐ 75
3067794‐ 110
SLIP COUPLER
FLOOR WASTE GULLY
3068119
FLOOR WASTE GULLY
JUNCTION
3067751 ‐ 50‐50 x 45°
3067752 ‐ 75‐50 x 45°
3067753 ‐ 75‐75 x 45°
3067757 ‐ 110‐50 x 45°
3067760 ‐ 110‐110 x 45°
3067765 ‐ 160‐160 x 45°
JUNCTION
SOCKET PLUG
3067825 ‐ 50
3067826 ‐ 75
3067828 ‐ 110
SOCKET PLUG
TRAP CONNECTIONS
3067845 ‐ 50
3067840 ‐ 50 x 87.5°
TRAP CONNECTIONS
LEVEL INVERT
3067815 ‐ 75‐50
3067816 ‐ 110‐50
3067817 ‐ 110‐75
3067819 ‐ 160‐110
LEVEL INVERT
PIPE ACOUSTIC CLAMP
4066449 ‐ 50
4066450 ‐ 75
4066452 ‐ 110
4066454 ‐ 160
PIPE ACOUSTIC CLAMP
KEY FEATURES AND BENEFITS
Less noise - high-performance system that reduces the acoustics of water flow.
Easier to install - ribbed fittings provide enhanced grip for easy installation in complex environments.
Angular rotation guidance - fittings have different markings at 15° and 40° intervals for easy alignment.
Insertion depth check - Ribs on the spigots of the fittings checks complete insertion into the socket.
New black colour - adds to the durability and robustness of Sitech+ and improves protection against UV radiation when stored outside at a building site.
Everything you need to know about our SiTech Plus System
All resources are downloadable. If you require more information, don’t hesitate to contact us.
TECHNICAL MANUAL
PRODUCT TECHNICAL GUIDE

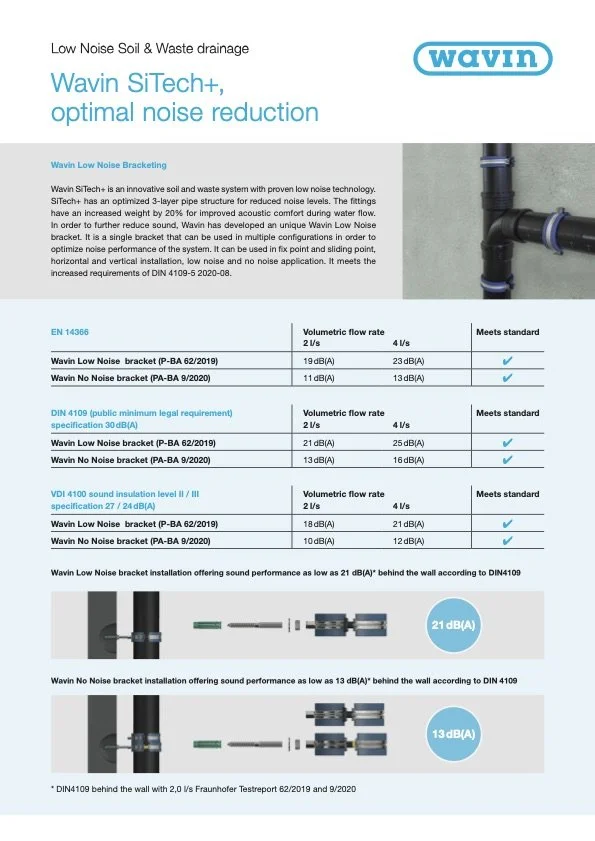

LOW NOISE BRACKET
